| Part Number: |
6611626 |
FREIGHTLINER RADIATOR - MT-45 (2003-2010) 27-7/16" x 25-7/8" x 2-1/8"
Aluminum Plastic Radiator w/o frame: 6601626
| Material: |
Aluminium Plastic
|
|---|
Features
| Manufacturer | FREIGHTLINER | ||||||||||||
| Model | MB Bus chassis /MT Step van chassis, MT-45, MT-55, MB-55 | ||||||||||||
| Year | 2003-2010 | ||||||||||||
| Fuel | Diesel | ||||||||||||
| Transmission | Automatic | ||||||||||||
| Construction | Aluminium Plastic | ||||||||||||

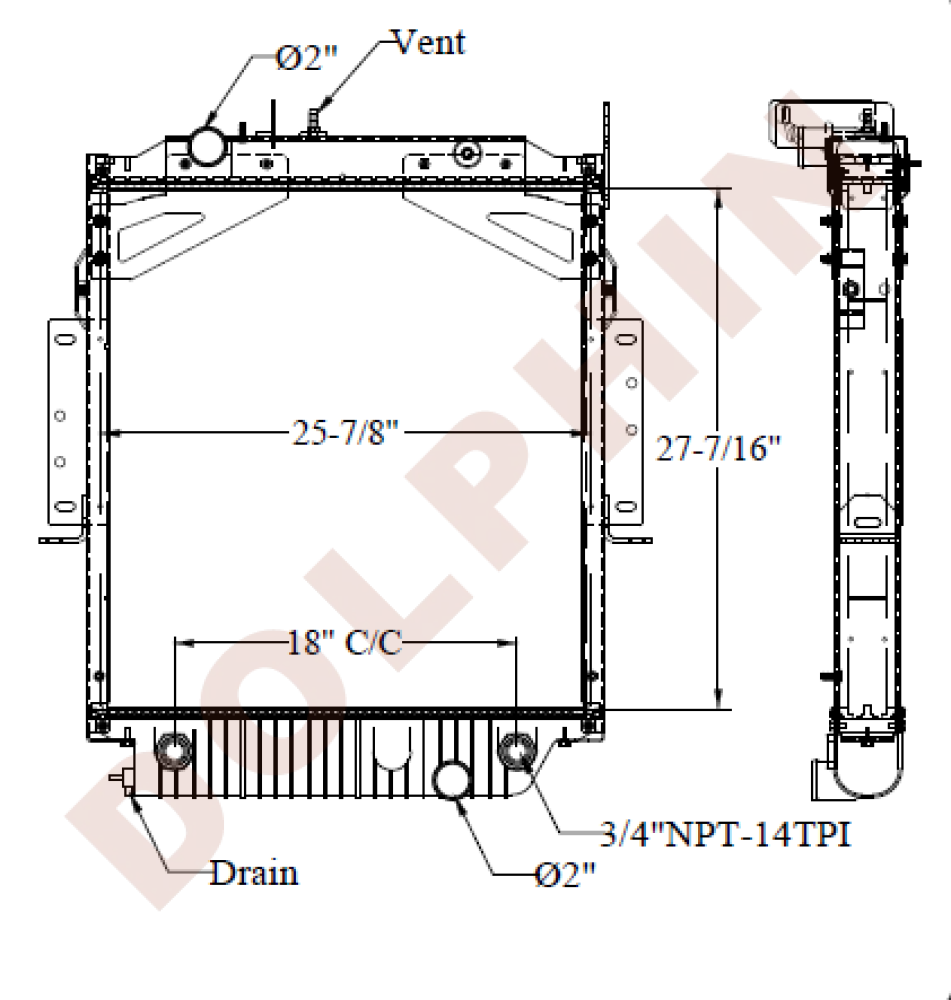

| Core Height | 27-7/16" | ||||||||||||
| Core Width | 25-7/8" | ||||||||||||
| Core Depth | 2-1/8" | ||||||||||||
| Core Style | |||||||||||||
| No of Rows | 2 Row | ||||||||||||
| Inlet | 2" Upper Left | ||||||||||||
| Outlet | 2" Lower Right | ||||||||||||
| Oil Cooler TOC | 18" Centers (3/4"NPT-14TPI) | ||||||||||||
| Oil Cooler EOC | No | ||||||||||||
| Fin Type | Serpentine | ||||||||||||
| Fin Style | Louvered | ||||||||||||
| Fins Per Inch | 16 FPI | ||||||||||||
| Tube Type | Smooth | ||||||||||||
| Cross Reference/OEM | |||||||||||||
| Note: | All OEM/Cross Reference numbers and dimensions are to be verified and are only there as points of reference. | ||||||||||||
