Part Number:

9511507

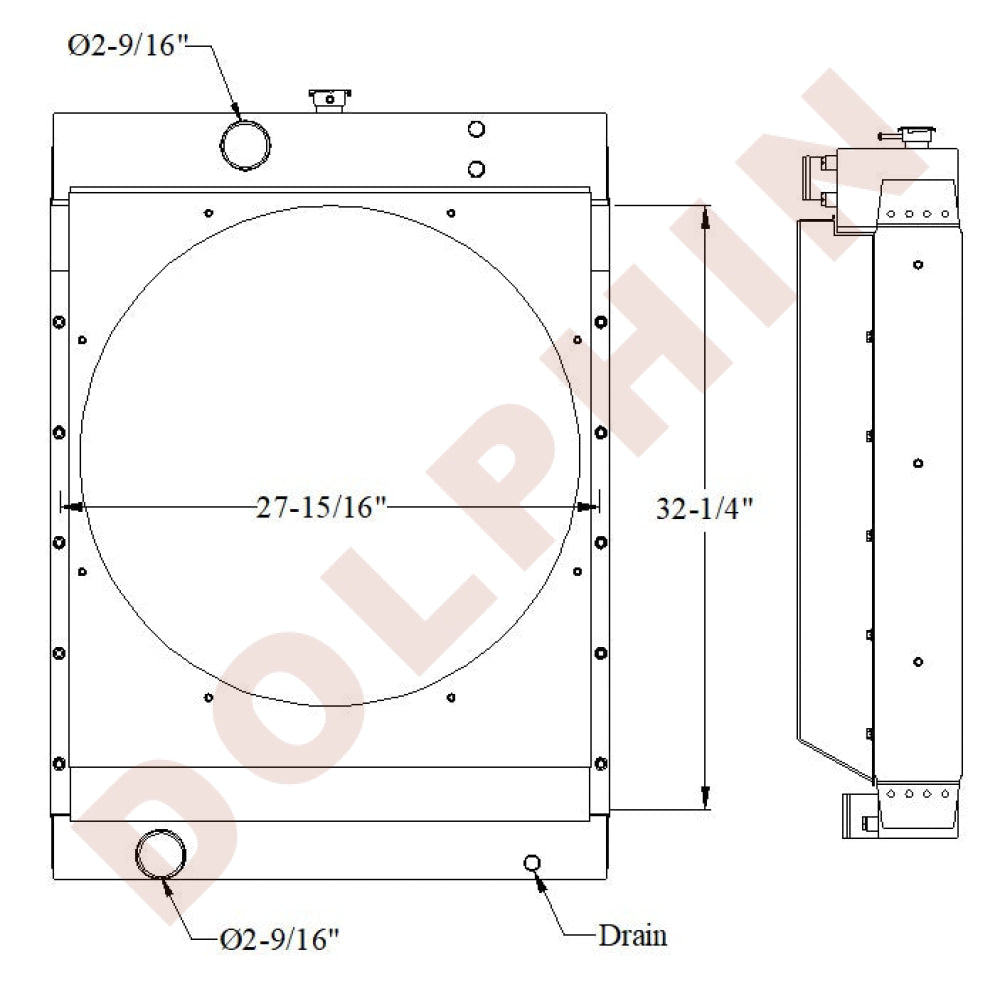

CATERPILLAR Radiator 32 5/16" x 27 15/16" x 4 1/8"


Material:	Copper Brass

Manufacturer	CATERPILLAR
Model	8306
Year	-
Fuel	-
Transmission	-
Construction	Copper Brass
Core Height	32 5/16"
Core Width	27 15/16"
Core Depth	4 1/8"
Overall Size	Overall Size 104-7/16" X 128-7/8" X 128-1/8"
Core Style	Mark-4 (See Core Pattern)
No of Rows	6 Row
Inlet	2-9/16" Upper Left
Outlet	2-9/16" Lower Left
Fin Style	Louvered
Fin Type	Flat Fin
Fins Per Inch	10 FPI
Tube Type	Dimpled
Oil Cooler TOC	-
Oil Cooler EOC	-
Cross Reference/OEM	-
Note:	All OEM/Cross Reference numbers and dimensions are to be verified and are only there as points of reference.
