3900046 Radiator
Part Number:


KOMATSU RADIATOR - 54-7/16 x 17-1/2 x 5"

FITS: Dump Truck HD785-7

Complete Aluminium
In stock



Manufacturer KOMATSU
Model Dump Truck HD785-7
Year -
Fuel -
Transmission Manual
Construction Complete Aluminium

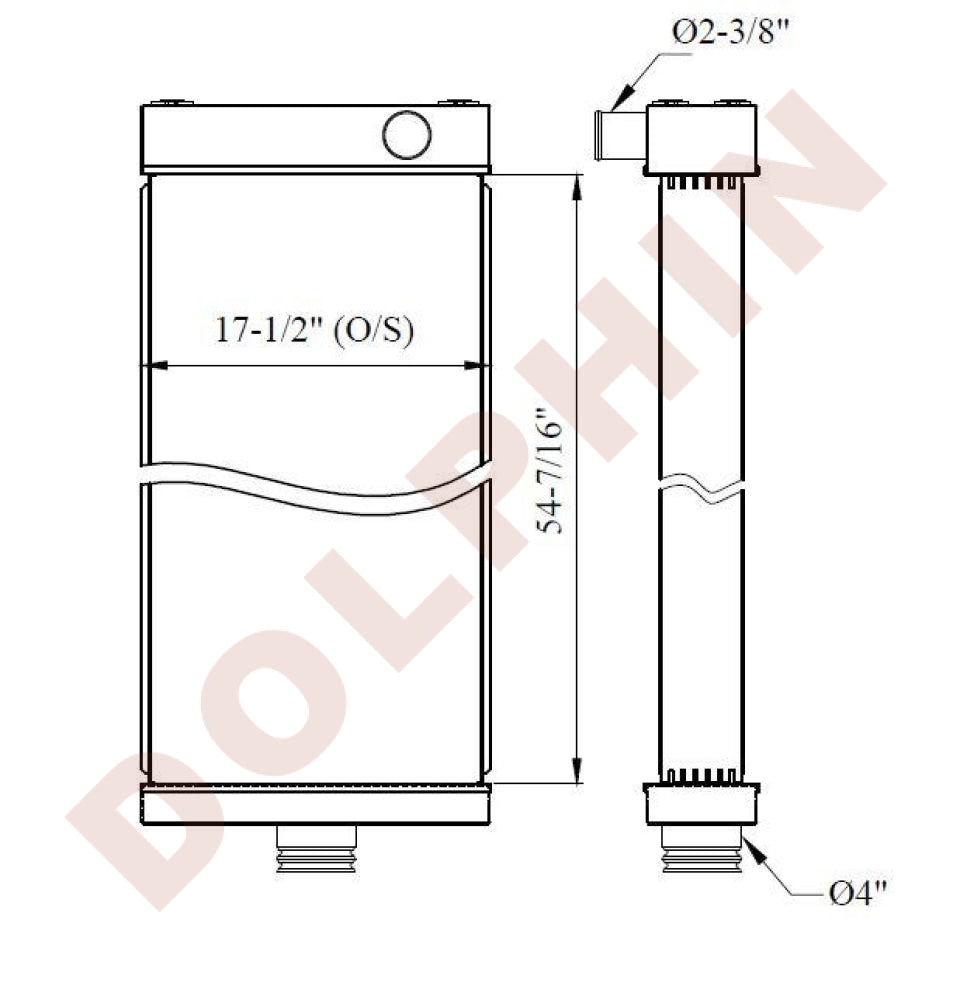

Core Height 54-7/16"
Core Width 17-1/2"
Core Depth 5"
Core Style

A9.85SQ (See Core Pattern)

No of Rows 5 Row
Inlet 2-3/8" Upper Right
Outlet 4" Lower Center
Fin Style Wavy
Fin Type Square wave
Fins Per Inch 8 FPI
Tube Type Smooth
Oil Cooler TOC No
Oil Cooler EOC No
Cross Reference/OEM 1771-086-1011, 561-03-81632, 561-03-81631, 561-03-82700, 561-03-82703, 561-03-82704, 561-03-82705
Note: All OEM/Cross Reference numbers and dimensions are to be verified and are only there as points of reference.
