Mack Radiator - Cv613 Cv713 Rd Rd600 Rd688S Rl Rs Models (1995-2005) 27-3/8 X 34-1/16 2-1/8’
Part Number:


MACK RADIATOR - CV613, CV713, RD, RD600, RD688S, RL, RS MODELS (1995-2005) 27-3/8 x 34-1/16 x 2-1/8"

Aluminium Plastic w/o frame: 6601347

Aluminium Plastic


Manufacturer MACK
Model Mack ,CV613, CV713, RD, RD600, RD688S, RL, RS MODELS
Year 1995-2005
Fuel Diesel
Transmission Manual
Construction Aluminium Plastic

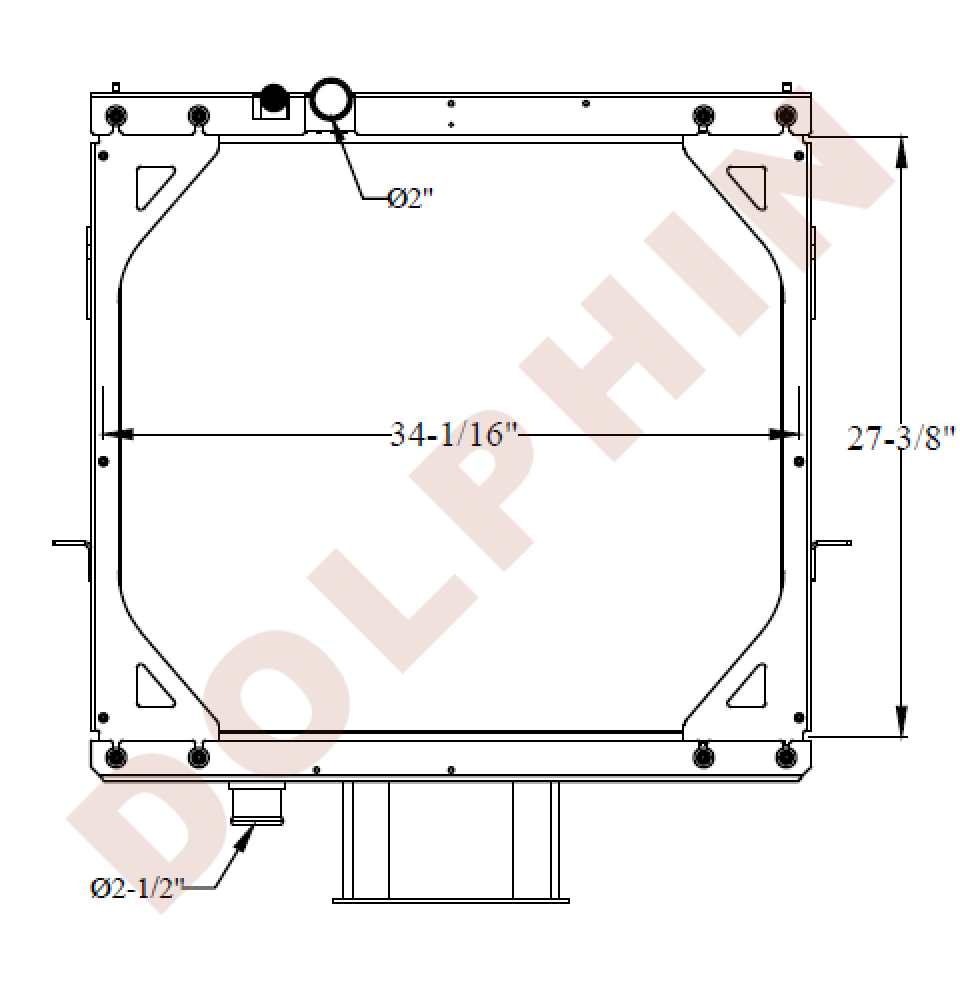

Core Height 27-3/8"
Core Width 34-1/16"
Core Depth 2-1/8"
Core Style

A10 (See Core Pattern)

No of Rows 2 Row
Inlet 2" Upper Left
Outlet 2-1/2" Lower Left
Oil Cooler TOC No
Oil Cooler EOC No
Fin Type Serpentine
Fin Style Louvered
Fins Per Inch 16 FPI
Tube Type Smooth
Cross Reference/OEM
Note: All OEM/Cross Reference numbers and dimensions are to be verified and are only there as points of reference.
