| Part Number: |
6811347 |

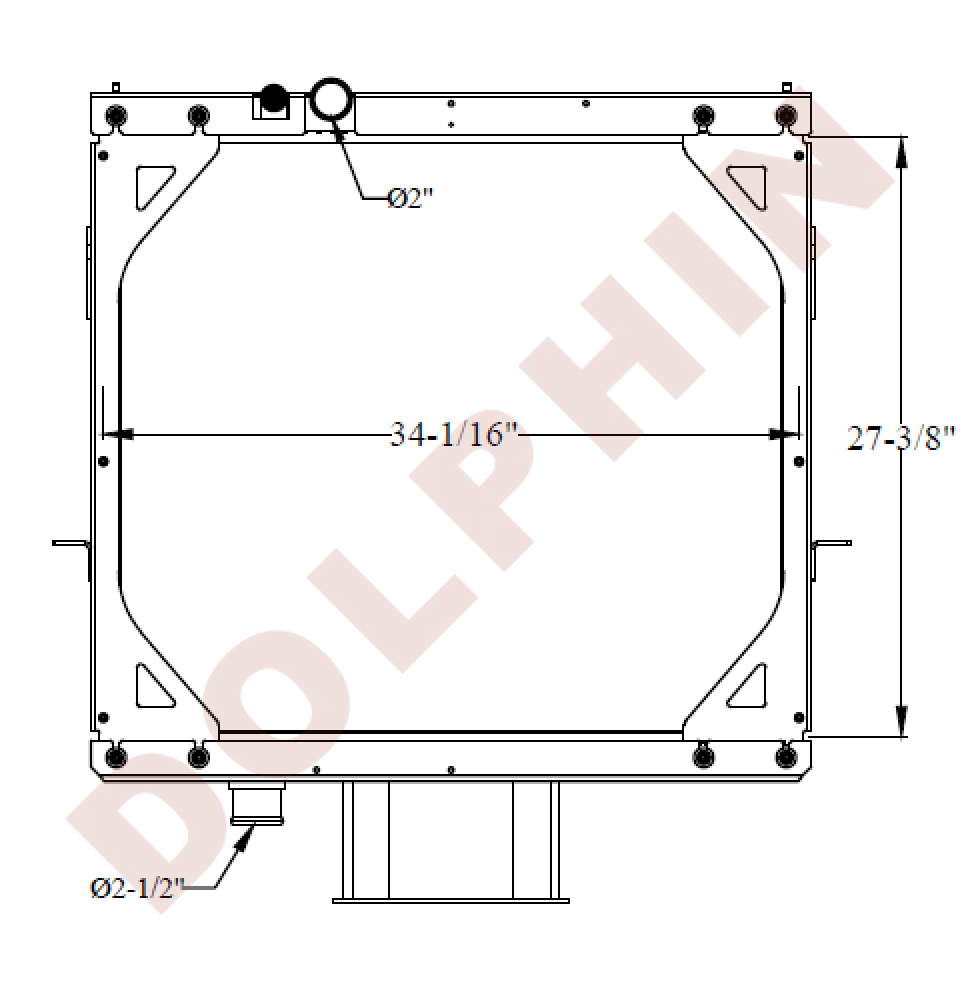

MACK RADIATOR - CV613, CV713, RD, RD600, RD688S, RL, RS MODELS (1995-2005) 27-3/8 x 34-1/16 x 2-1/8"
Aluminium Plastic w/o frame: 6801347
| Material |
Aluminium Plastic
|
|---|
Features
| Manufacturer | MACK | ||||||
| Model | Mack ,CV613, CV713, RD, RD600, RD688S, RL, RS MODELS | ||||||
| Year | 1995-2005 | ||||||
| Fuel | Diesel | ||||||
| Transmission | Manual | ||||||
| Construction | Aluminium Plastic | ||||||
| Core Height | 27-3/8" | ||||||
| Core Width | 34-1/16" | ||||||
| Core Depth | 2-1/8" | ||||||
| Core Style | A9.8HG (See Core Pattern) |
||||||
| No of Rows | 2 Row | ||||||
| Inlet | 2" Upper Left | ||||||
| Outlet | 2-1/2" Lower Left | ||||||
| Oil Cooler TOC | No | ||||||
| Oil Cooler EOC | No | ||||||
| Fin Type | Serpentine | ||||||
| Fin Style | Louvered | ||||||
| Fins Per Inch | 16 FPI | ||||||
| Tube Type | Smooth | ||||||
| Cross Reference/OEM | |||||||
| Note: | All OEM/Cross Reference numbers and dimensions are to be verified and are only there as points of reference. | ||||||
